TY S48 series 8-14VA

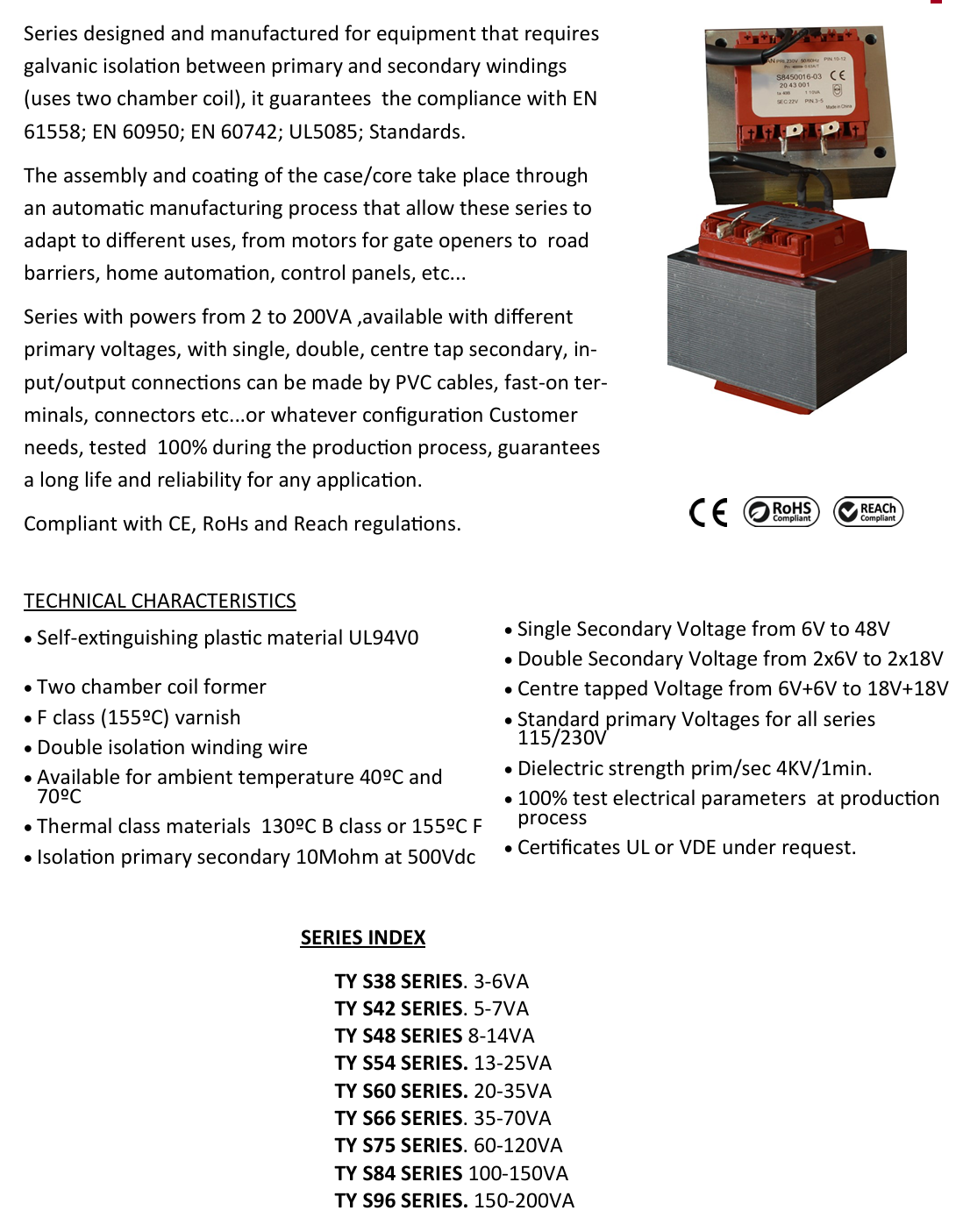

Series designed and manufactured for equipment that requires galvanic isolation between primary and secondary windings (uses two chamber coil), it guarantees  the compliance with EN 61558; EN 60950; EN 60742; UL5085; Standards. The assembly and coating of the case/core take place through an automatic manufacturing process that allow these series to adapt to different uses, from motors for gate openers to  road barriers, home automation, control panels, etc... Series with powers from 2 to 200VA ,available with different primary voltages, with single, double, centre tap secondary, in put/output connections can be made by PVC cables, fast-on ter minals, connectors etc...or whatever configuration Customer needs, tested  100% during the production process, guarantees a long life and reliability for any application. Compliant with CE, RoHs and Reach regulations.
